Technical Information
The RainCo-3 board is simply connected between the power adapter and the pressure pump.
If the original power adapter is not powerful enough, you can ask your misting system supplier for a more powerful one or search for a 24V power adapter on Amazon, for example.
Technical information
The RainCo-3 board is simply connected between the power adapter and the pressure pump.
If the original power adapter is not powerful enough, you can ask your misting system supplier for a more powerful one or search for a 24V power adapter on Amazon, for example.

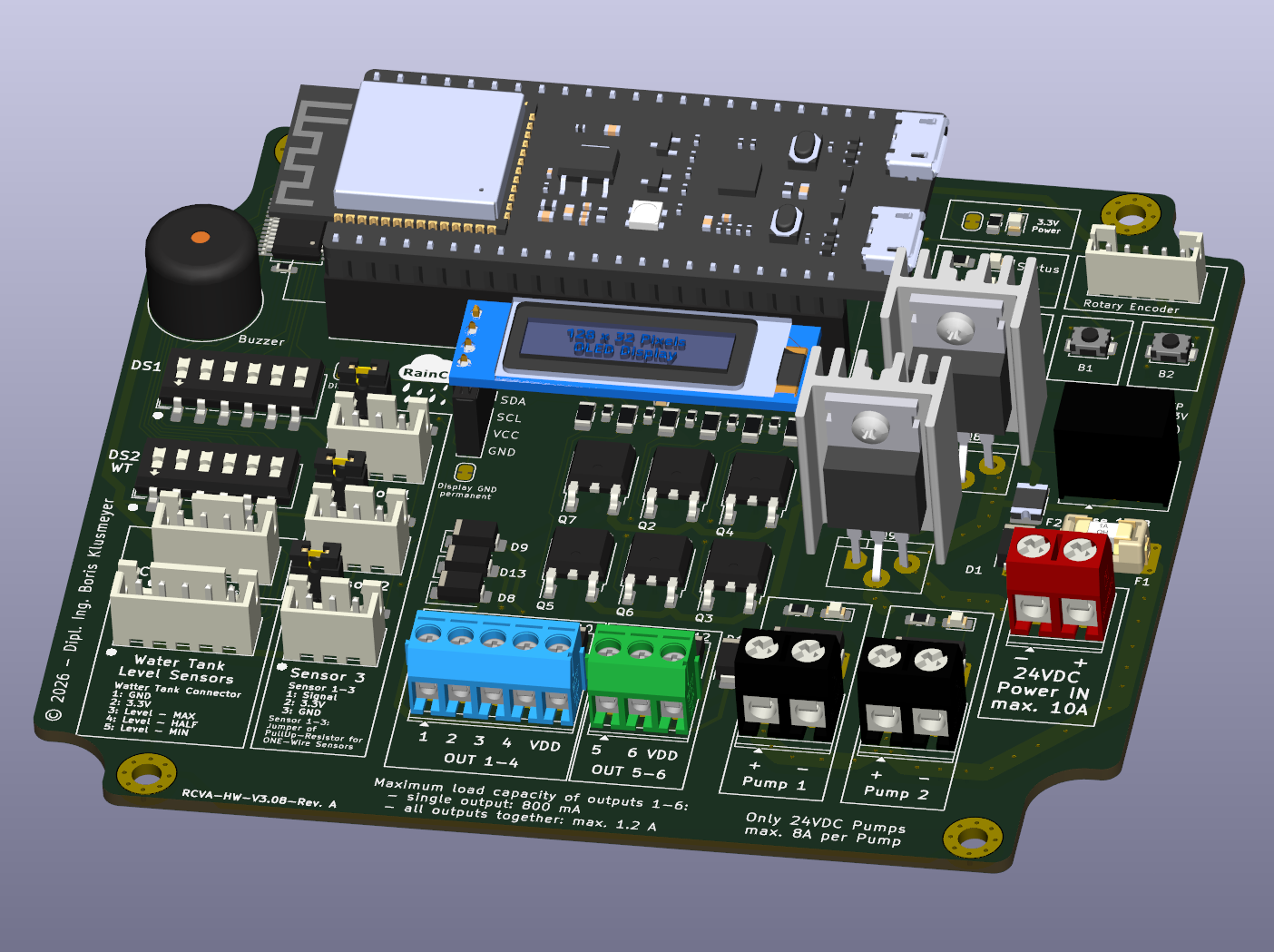

Technical information
- ESP32-S3DevBoard – N16R8
- OLED display with 128x32 pixels
- Rotary encoder for operation
- Connection of up to 2 pumps; for example, a rain pump and a secondary pump
- Up to 6 valves for up to 6 different spray circuits
- Connection for water tank monitoring (3 sensors: min, half, max)
- 3 x connections for sensors for DHT22 or DS18B20; for future use
- 1 x I2C connection; for future use
- Easy operation via web interface possible
- Controllable via the ‘Home Assistant’ smart home system
